Application

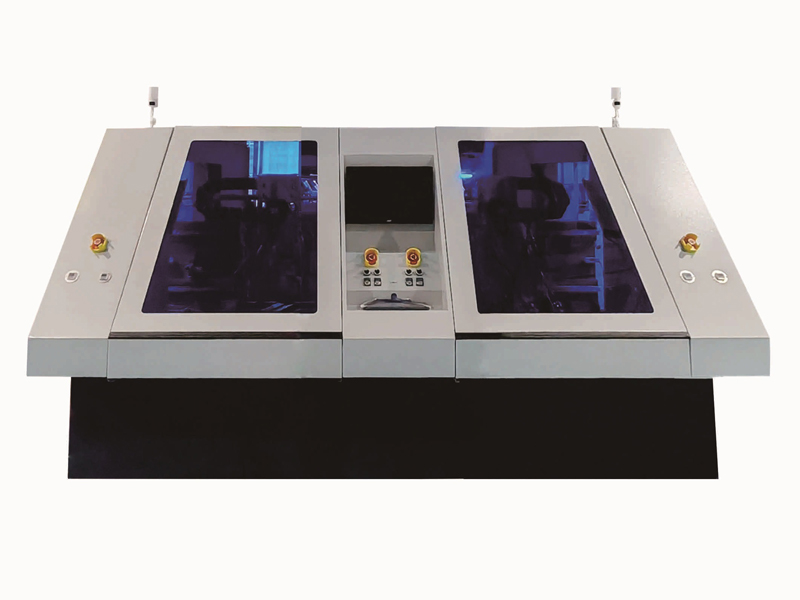

1、HJ-LMO4SXDR型四轴双控钻锣一体机以锣槽方式有效解决短槽孔钻孔时歪、偏和不规则的品质问题同时可大幅度提高槽孔加工效率。

HJ-LM04SXDR Four-axis double controlmachine can solve deviation and irregular shape of SOLT by routing method,then to improve the efficiency of slot processing the same;

2、槽孔占比达到20%以上的电路板，改钻槽孔为锣工艺，槽孔越多提升率越明显

The PCB SOLT be more than 20% of CNC,need to improvement in processing efficiency by Changing the drilling to routing;

3、金属包边板，钻锣工序在同一工作台面完成，节省上下板人力投入，无需重新定位

For metal-cald PCB and can to drillina and routina which done on the machine the same. no need to loading and unloading then to save time and cost:

4、应用于小批量的单钻或者锣加工，作为传统钻机或者锣机使用

Used for small batch drilling and routing the same for conventional CNC amchine:

5、针对短槽歪移问题，此设备可以完全解决和预防

The machine can to solving solt deformation by the machine;

6、可以直接实现6.5-13mm的超大刀直接一次钻。

Machine can to drilled out diameter 6.5-13mm directly.;

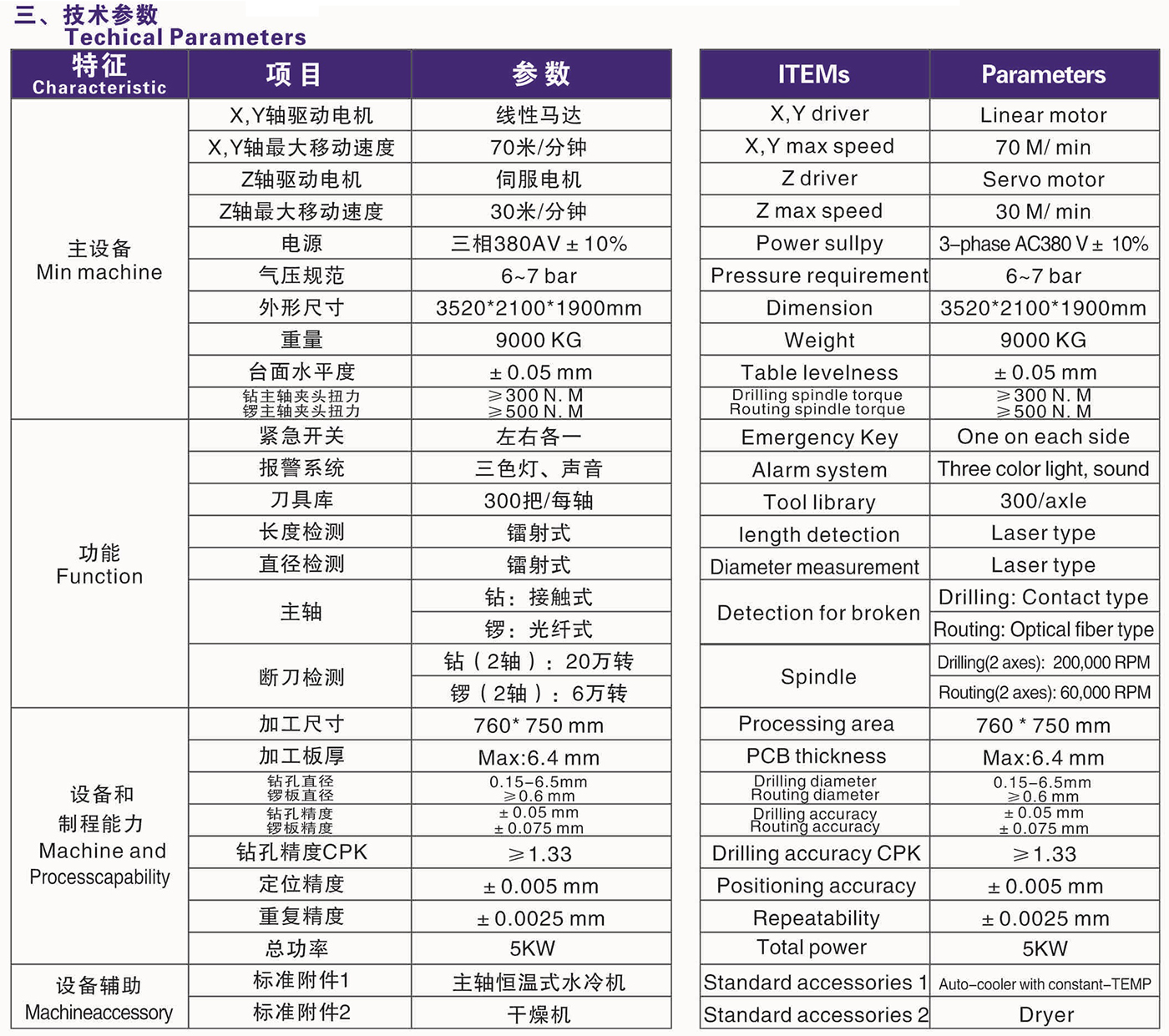

设备主要性能

Equipment Main performance

1、双套独立控制系统，双台面独立运动，Window10操作系统，控制系统采用华建自主知识产权Delta5.0

Two sets of independent control system to support double table independent ,Window 10 operation system to control machine base on own R&D Delta 5.0

2、两个不同加工文件，可分别在两个台面采用不同的加工模式单独加工，可钻或锣

Two independent sets can to ndependent operating by two different processing file drilling and routing which doing the same time

3、小批量电路板和样板的加工，可节约成本

Cost-effective for processing small batch and sample of PCB

4、机床及运动轴基准平台全部为天然黑色花岗石，精度高，受外界环境变化小

Machine frame and motion axis reference plane made entirely of natural black aranite providing high precision and minimal sensitivity to external environment changes

5、Z轴传动采用世界[敏感词]产品日本NSK或THK公司的滚珠丝杆

TheZ-axis drive uses ball screws from world-renowned NSK or THK brands.

6、导向采用日本THK和德国施耐博格直线导轨

Guiding system use THK brand from Japan and Germany Schneeberager for liner guides

7、钻气浮主轴20万转每分钟，锣主轴6万转每分钟

Drilling spindle speed:200K.rpm air-floating spindle.routing spindle speed:60K.rpm

8、自动测量刀具长度，接触式断刀检测

Automatic measuring the length of tool and contact-based tool breakage detection
