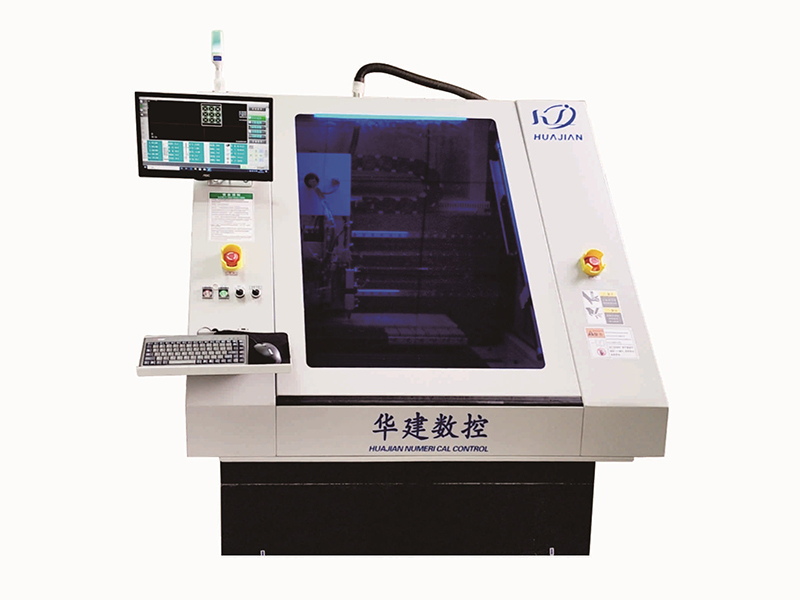

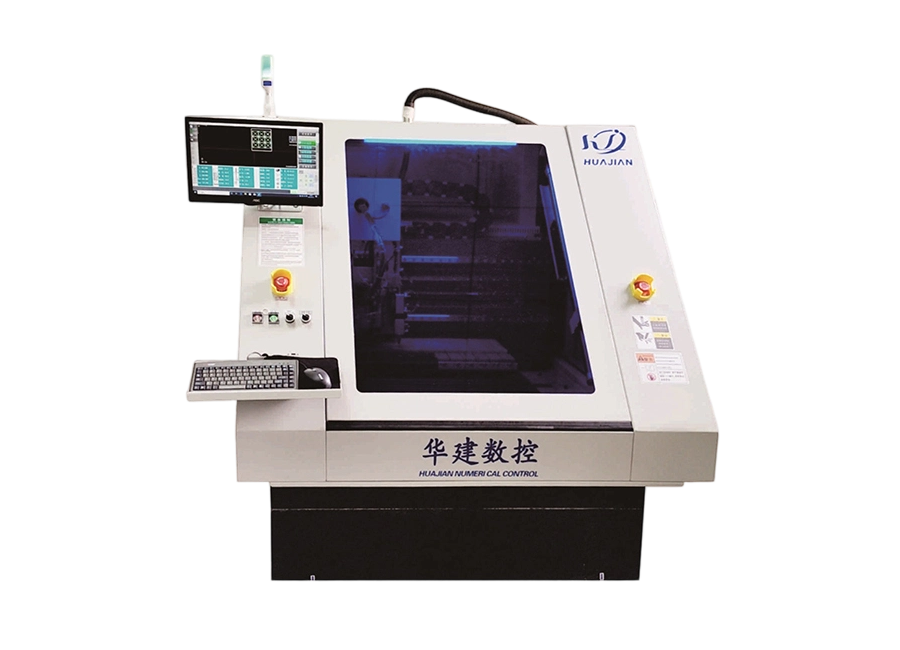

Single axis drilling rig

Main performance of the equipment

EquipmentMain performance

1. Minimum drilling diameter of 80 um;

Minimum drillina diameter of 80 um:

2. Linear motor drive provides optimal positioning accuracy control capability;

Linear motor drive for optimal positioning accuracy control;

3. Renishaw linear optical ruler with a resolution of 0.1 micrometers;

Renishawlinearencoder with a resolution of 0.1 microns;

4. High dynamic Z-axis linear motor can perform precise segmented drilling operations:

High dynamic Z-axis linear motor for precise segmented drilling operations;

5. West wind main axis, with a speed of 200000 revolutions per minute;

Westwind spindle withaspeed of200,000 revolutions per minute,

6. High precision cooling machine with temperature control capability of 1 ℃:

High-precision cooling system with temperature control capability of 1°C

7. Automatic measurement of tool diameter, length, tool breakage detection, and presser foot wear detection.

Automatic measurement of tool diameter, length, tool breakage detection, andfoot wear detection.

8. Board detection function, realizing automatic processing and automatic cycle drilling depth control (optional).

Board detection function, to achieve automatic processing and automatic circulation drilling control (optional)
