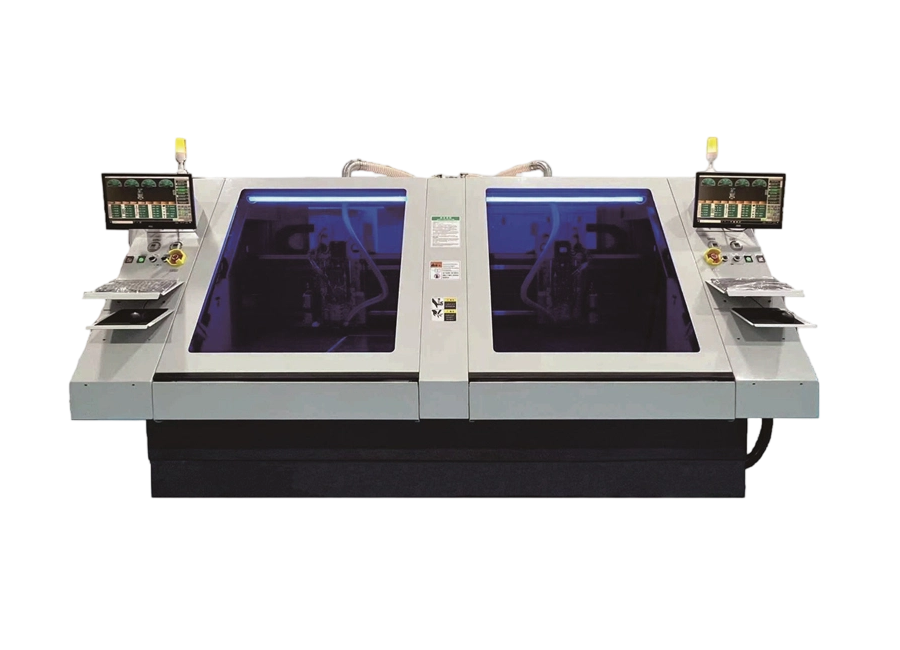

设备主要性能

EquipmentMain performance

1、双套独立控制系统，双台面独立运动，Window10操作系统，控制系统采用华建自主知识产权Delta5.0

Two sets of independent control system to support double table independent ,Window 10 operation system

to controlmachine base on own R&D Delta 5.0

2、两个不同加工文件，可分别在两个台面采用不同的加工模式单独加工

Two independent sets can to ndependent operating by two different processing file.

drilling and routing which doing the same time:

3、小批量电路板和样板的加工，可节约成本

Cost-effective for processing small batch and sample of PCB:

4、机床及运动轴基准平台全部为天然黑色花岗石，精度高，受外界环境变化小

Machine frame and motion axis reference plane made entirely of natural black granite

providing high precision and minimal sensitivity to external environment changes;

5、Z轴传动采用世界[敏感词]产品日本NSK或THK公司的滚珠丝杆

The Z-axis drive uses ball screws from world-renowned NSK or THK brands.

6、导向采用日本THK和德国施耐博格直线导轨

Guiding system use THK brand from Japan and Germany Schneeberager for liner guides

7、气浮主轴20万转每分钟

Drilling spindle speed:200K.rpm air-floating spindle

8、自动测量刀具长度，接触式断刀检测

Automatic measuring the length of tool and contact-based tool breakage detection

9、板面探测功能，实现自动加工和自动循环钻深控制(选配)。

Board detection function, to achieve automatic processing and automatic circulation driling control (optional）
