应用场景

Application

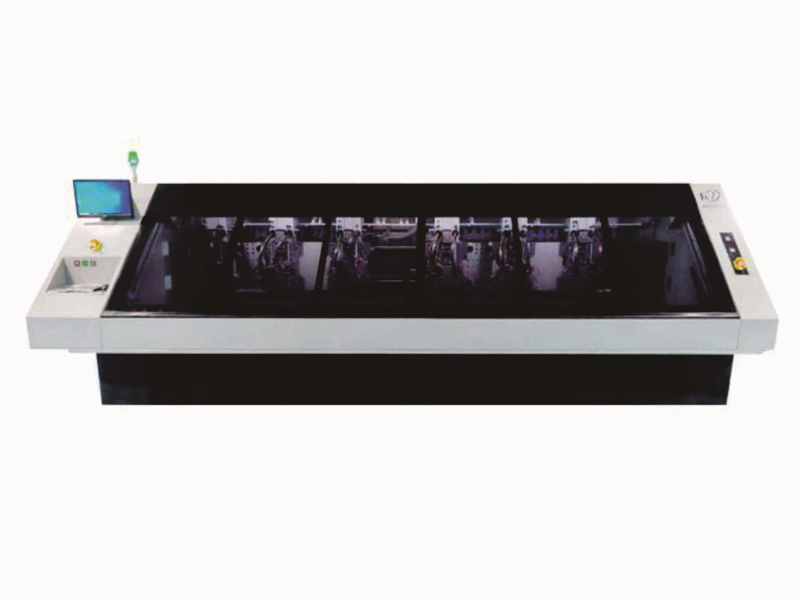

1、HJ-LM12XDR型12轴6台面钻/锣一体机以锣槽方式有效解决短槽孔钻孔时歪、偏和不规则的品质问题

同时可大幅度提高槽孔加工效率.

HJ-LM12XDR machine can solve deviation and irregular shape of SOLT by routing method,

then to improve the efficiency of slot processing the same;

2、槽孔占比达到20%以上的电路板，改钻槽孔为锣工艺，槽孔越多提升率越明显

The PCB SOLT be more than 20% of CNC,need to improvement in processing efficiency by

Changing the drilling to routing;

3、金属包边板，钻锣工序在同一工作台面完成，节省上下板人力投入，无需重新定位

For metal-cald PCB and can to drilling and routing which done on the machine the same

no need to loading and unloading then to save time and cost;

4、针对短槽歪移问题，此设备可以完全解决和预防

The machine can to solving solt deformation by the machine;

5、可以直接实现6.5-13mm的超大刀直接一次钻。

Machine can to drilled out diameter6.5-13mm directly.;

设备主要性能

Equipment Main performance

1、Window10操作系统，控制系统采用华建自主知识产权Delta5.0

Window 10 operation system to control machine base on own R&D Delta 5.0

2、双X轴，双Y轴线性驱动，统一控制，统一运作，加工同一文件

Dual X-axis and Y-axis linear drive to control and movement on the same file

3、机床及运动轴基准平台全部为天然黑色花岗石，精度高，受外界环境变化小

Machine frame and motion axis reference plane made entirely of natural black granite,

providing hiah precision and minimal sensitivity to external environment changes

4、Z轴传动采用世界[敏感词]产品日本NSK或THK公司的滚珠丝杆

The Z-axis drive uses ball screws from world-renownedbrands,NSK or THK

5、导向采用日本THK和德国施耐博格直线导轨

Guiding system use THK brand from Japan and Germany Schneeberager for liner guides

6、钻气浮主轴20万转每分钟，锣主轴6万转每分钟

Drilling spindle speed:200K.rpm air-floating spindle.routing spindle speed:60K.rpm

7、自动测量刀具长度，接触式断刀检测

Automatic measuring the length of tool and contact-based tool breakage detection
