Application scenarios

Application

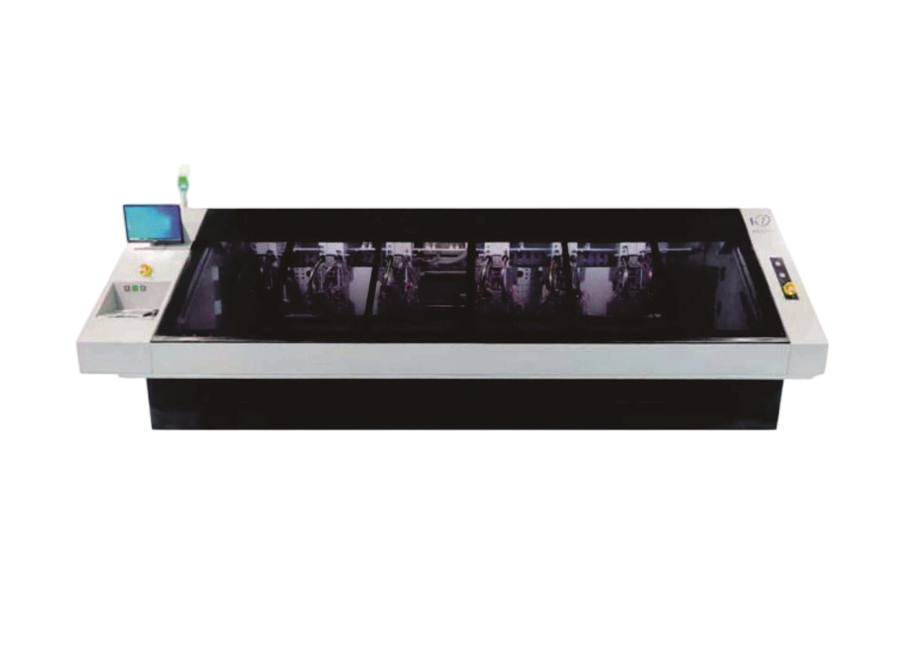

1. HJ-LM12XDR 12 axis 6-stand drilling/gong integrated machine effectively solves the quality problems of skewness, deviation, and irregularity in short slot hole drilling by using gong groove method

At the same time, it can significantly improve the efficiency of slot machining

HJ-LM12XDR machine can solve deviation and irregular shape of SOLT by routing method,

then to improve the efficiency of slot processing the same;

2. For circuit boards with a slot ratio of over 20%, the drilling of slot holes should be changed to gong technology. The more slot holes there are, the more obvious the improvement rate will be

The PCB SOLT be more than 20% of CNC,need to improvement in processing efficiency by

Changing the drilling to routing;

3. The metal edging board and drilling process are completed on the same workbench, saving manpower investment for the upper and lower boards without the need for repositioning

For metal-cald PCB and can to drilling and routing which done on the machine the same

no need to loading and unloading then to save time and cost;

4. This device can completely solve and prevent the problem of short slot misalignment

The machine can to solving solt deformation by the machine;

5. It can directly drill 6.5-13mm ultra large knives in one go.

Machine can to drilled out diameter6.5-13mm directly.;

Main performance of the equipment

Equipment Main performance

1. Windows 10 operating system, control system adopts Huajian's proprietary intellectual property Delta5.0

Window 10 operation system to control machine base on own R&D Delta 5.0

2. Dual X-axis, dual Y-axis linear drive, unified control, unified operation, processing the same file

Dual X-axis and Y-axis linear drive to control and movement on the same file

3. The machine tool and motion axis reference platform are all made of natural black granite, with high precision and minimal susceptibility to external environmental changes

Machine frame and motion axis reference plane made entirely of natural black granite,

providing hiah precision and minimal sensitivity to external environment changes

4. The Z-axis transmission adopts ball screws from world-renowned Japanese NSK or THK companies

The Z-axis drive uses ball screws from world-renownedbrands,NSK or THK

5. Guided by THK from Japan and Schneberg linear guides from Germany

Guiding system use THK brand from Japan and Germany Schneeberager for liner guides

6. Drilling air floating spindle 200000 revolutions per minute, gong spindle 60000 revolutions per minute

Drilling spindle speed:200K.rpm air-floating spindle.routing spindle speed:60K.rpm

7. Automatic measurement of tool length, contact type tool breakage detection

Automatic measuring the length of tool and contact-based tool breakage detection
